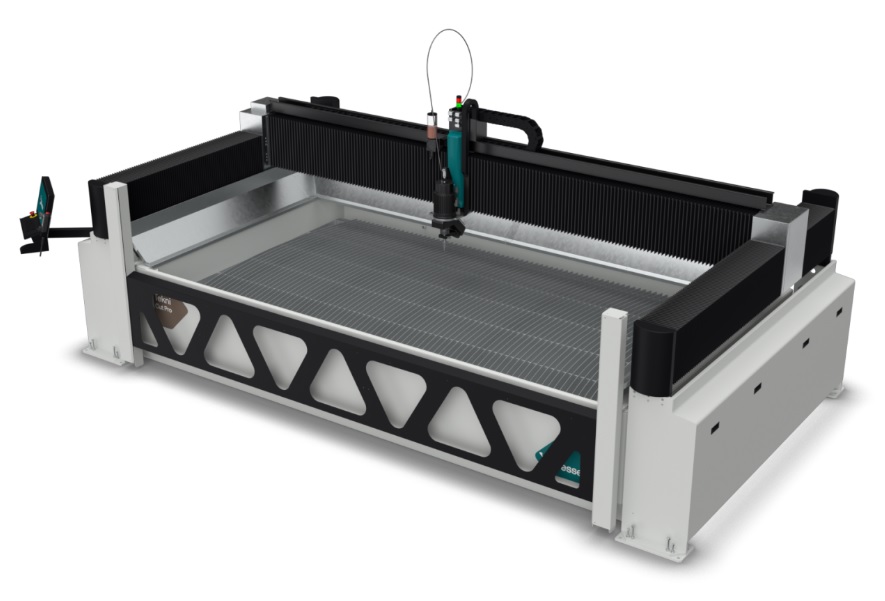

Biesse Materia Cut J 0 Waterjet Cutter
Cut metal, glass, stone, composite materials, plaste, rubber, food and a lot more besides on this one incredibly versatile machine.
Cold cutting gives no heat affected zone (HAZ) and cutting speed can be tuned to strike the perfect balance between higher output, and a smooth edge finish.
Import standard file formats from your current CAD software or draw them on the machine, set it to work and enjoy lights out machining.
Standard features include:
• Sized range from 915 x 1525 to 3,000 x 10,000
• Cut nearly anything up to 200mm thick
• 3 or 5 axis options
• +/- 0.12mm accuracy
• Servo drive High Pressure Pump for high power, efficiency and control
• Pressure up to 88,000PSI
• Servo positioned Z axis with laser terrain mapping and edge location optics
• Pure water or abrasive cutting head options
• Tech-sense variable abrasive feed system for optimal garnet flow in all situations
• Raise/lower water level in a few seconds at the touch of a button for submerged cutting
• Break away head automatically halts the machine in the event of a crash
• Import a wide range of standard file formats
Optional Features:
• Add 2nd cutting head and double production
• Small, medium or large abrasive hopper options
Finance Options Available
• Up to 100% funding available
• All lending is subject to standard lending criteria
• Finance provided by independent, asset finance specialists
• Enquire for details
See it in action here. https://www.youtube.com/watch?v=shWrww-dUDk
Fully support in NZ by local, factory trained technicians
Contact us now for details
